SPIN323 DALI 32W/840 0 lm BL, UGR<191568
LED PANEL 600x600, BackLite
Offices • Shops • Education classes • Children Rooms • Living Rooms
| Price MOQ: 6 pcs | 95,00 € | Add to List |
| Project Price MOQ: 6 pcs | To get better prices, please Register or Login | |
On-stock >30 pcs?Prices without VAT
Basic characteristics
3223050>0.9SPD20IK03LVDEMC
4000>80θ=120°<0.1s
1 = excellent visual comfort
Bulb
equivalent = 0 lm
equivalent = 0 lm
Technical specifications
| Segment of use: | Resident, Office, Shop, Industrial |
|---|---|
| Designed for use: | Interior |
| Manufacturer: | SLOS Import |
| Power consumption: | 32 W |
| Supply voltage: | AC ~ 230 V / 50 Hz |
| Chip type: | 2835 HV 9V 1W |
| System luminous efficacy: | 160 lm/W |
| Power factor (PF): | >0,90 |
| Degree of protection: | IP20 |
| IK: | 03 |
| Protection class: | Double |
| Working temperature: | -20 ... 40 °C |
| Declaration of Conformity: | CE LVD, CE EMC |
| Color temperature: | 4 000 °K |
| Color rendering index: | Ra > 80 |
| Uniform Glare Rate (UGR): | 19 |
| Luminous flux distribution: | |
| Curve of luminosity: | Symetric |
| Beam angle: | 120° |
| Dimmable: | Yes (DALI, with accessories) |
| The time at which the light comes on: | 0,1 s |
| Shape of the luminaire: | štvorec |

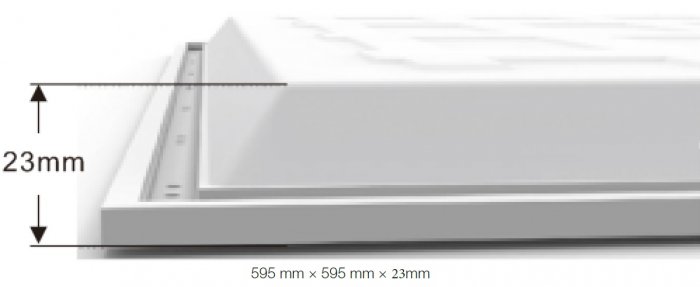

| Product dimensions: | 595 × 595 × 23 mm |
| Weight netto: | 2.1 kg |
| Body color: | White |
| Mounting methods: | Suspension, surfaced, recessed |
| Lifespan: | 40 000 h |
| Warranty: | 2 y. standard |
| Weight carton: | 12.8 kg |
| Pcs in package: | 6 |
| Pcs in carton: | 6 |
